QDockWidget Class Reference
^{^{[

QtGui

module]}}

The QDockWidget class provides a widget that can be docked inside a QMainWindow or floated as a top-level window on the desktop. 更多...

继承 QWidget .

类型

enum DockWidgetFeature { DockWidgetClosable, DockWidgetMovable, DockWidgetFloatable, DockWidgetVerticalTitleBar, AllDockWidgetFeatures, NoDockWidgetFeatures }
class DockWidgetFeatures

方法

__init__ ( self , QString title , QWidget parent = None, Qt.WindowFlags flags = 0)
__init__ ( self , QWidget parent = None, Qt.WindowFlags flags = 0)
Qt.DockWidgetAreas allowedAreas ( self )
changeEvent ( self , QEvent event )
closeEvent ( self , QCloseEvent event )
bool event ( self , QEvent event )
DockWidgetFeatures features ( self )
initStyleOption ( self , QStyleOptionDockWidget option )
bool isAreaAllowed ( self , Qt.DockWidgetArea area )
bool isFloating ( self )
paintEvent ( self , QPaintEvent event )
setAllowedAreas ( self , Qt.DockWidgetAreas areas )
setFeatures ( self , DockWidgetFeatures features )
setFloating ( self , bool floating )
setTitleBarWidget ( self , QWidget widget )
setWidget ( self , QWidget widget )
QWidget titleBarWidget ( self )
QAction toggleViewAction ( self )
QWidget widget ( self )

Qt Signals

void allowedAreasChanged (Qt::DockWidgetAreas)
void dockLocationChanged (Qt::DockWidgetArea)
void featuresChanged (QDockWidget::DockWidgetFeatures)
void topLevelChanged (bool)
void visibilityChanged (bool)

详细描述

The QDockWidget class provides a widget that can be docked inside a QMainWindow or floated as a top-level window on the desktop.

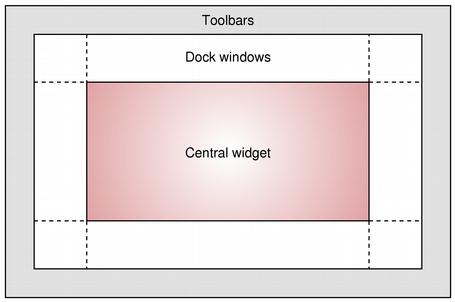

QDockWidget provides the concept of dock widgets, also know as tool palettes or utility windows. Dock windows are secondary windows placed in the dock widget area around the central widget 在 QMainWindow .

Dock windows can be moved inside their current area, moved into new areas and floated (e.g., undocked) by the end-user. The QDockWidget API allows the programmer to restrict the dock widgets ability to move, float and close, as well as the areas in which they can be placed.

外观

A QDockWidget consists of a title bar and the content area. The title bar displays the dock widgets 窗口标题， float button and a close button. Depending on the state of the QDockWidget, the float and close buttons may be either disabled or not shown at all.

The visual appearance of the title bar and buttons is dependent 在 style in use.

A QDockWidget acts as a wrapper for its child widget, set with setWidget (). Custom size hints, minimum and maximum sizes and size policies should be implemented in the child widget. QDockWidget will respect them, adjusting its own constraints to include the frame and title. Size constraints should not be set on the QDockWidget itself, because they change depending on whether it is docked; a docked QDockWidget has no frame and a smaller title bar.

类型文档编制

QDockWidget.DockWidgetFeature

常量	值	描述
`QDockWidget.DockWidgetClosable`	`0x01`	The dock widget can be closed. On some systems the dock widget always has a close button when it's floating (for example on MacOS 10.5).
`QDockWidget.DockWidgetMovable`	`0x02`	The dock widget can be moved between docks by the user.
`QDockWidget.DockWidgetFloatable`	`0x04`	The dock widget can be detached from the main window, and floated as an independent window.
`QDockWidget.DockWidgetVerticalTitleBar`	`0x08`	The dock widget displays a vertical title bar on its left side. This can be used to increase the amount of vertical space in a QMainWindow .
`QDockWidget.AllDockWidgetFeatures`	`DockWidgetClosable \| DockWidgetMovable \| DockWidgetFloatable`	(Deprecated) The dock widget can be closed, moved, and floated. Since new features might be added in future releases, the look and behavior of dock widgets might change if you use this flag. Please specify individual flags instead.
`QDockWidget.NoDockWidgetFeatures`	`0x00`	The dock widget cannot be closed, moved, or floated.

DockWidgetFeatures 类型是 typedef 对于 QFlags <DockWidgetFeature>. It stores an OR combination of DockWidgetFeature values.

方法文档编制

QDockWidget.init ( self , QString title , QWidget parent = None, Qt.WindowFlags flags = 0)

parent argument, if not None, causes self to be owned by Qt instead of PyQt.

构造 QDockWidget with parent parent 和窗口标志 flags . The dock widget will be placed in the left dock widget area.

窗口标题被设为 title . This title is used when the QDockWidget is docked and undocked. It is also used in the context menu provided by QMainWindow .

另请参阅 setWindowTitle ().

QDockWidget.init ( self , QWidget parent = None, Qt.WindowFlags flags = 0)

parent argument, if not None, causes self to be owned by Qt instead of PyQt.

构造 QDockWidget with parent parent 和窗口标志 flags . The dock widget will be placed in the left dock widget area.

Qt.DockWidgetAreas QDockWidget.allowedAreas ( self )

QDockWidget.changeEvent ( self , QEvent event )

重实现自 QWidget.changeEvent ().

QDockWidget.closeEvent ( self , QCloseEvent event )

重实现自 QWidget.closeEvent ().

bool QDockWidget.event ( self , QEvent event )

重实现自 QObject.event ().

DockWidgetFeatures QDockWidget.features ( self )

QDockWidget.initStyleOption ( self , QStyleOptionDockWidget option )

初始化 option 采用值来自此 QDockWidget . This method is useful for subclasses when they need a QStyleOptionDockWidget , but don't want to fill in all the information themselves.

另请参阅 QStyleOption.initFrom ().

bool QDockWidget.isAreaAllowed ( self , Qt.DockWidgetArea area )

Returns true if this dock widget can be placed in the given area ；否则返回 false。

bool QDockWidget.isFloating ( self )

QDockWidget.paintEvent ( self , QPaintEvent event )

重实现自 QWidget.paintEvent ().

QDockWidget.setAllowedAreas ( self , Qt.DockWidgetAreas areas )

QDockWidget.setFeatures ( self , DockWidgetFeatures features )

QDockWidget.setFloating ( self , bool floating )

QDockWidget.setTitleBarWidget ( self , QWidget widget )

widget argument has it's ownership transferred to Qt.

Sets an arbitrary widget as the dock widget's title bar. 若 widget is 0, any custom title bar widget previously set on the dock widget is removed, but not deleted, and the default title bar will be used instead.

If a title bar widget is set, QDockWidget will not use native window decorations when it is floated.

Here are some tips for implementing custom title bars:

Mouse events that are not explicitly handled by the title bar widget must be ignored by calling QMouseEvent.ignore (). These events then propagate to the QDockWidget parent, which handles them in the usual manner, moving when the title bar is dragged, docking and undocking when it is double-clicked, etc.

When DockWidgetVerticalTitleBar is set on QDockWidget , the title bar widget is repositioned accordingly. In resizeEvent (), the title bar should check what orientation it should assume:

 QDockWidget *dockWidget = qobject_cast<QDockWidget*>(parentWidget());
 if (dockWidget->features() & QDockWidget.DockWidgetVerticalTitleBar) {
     // I need to be vertical
 } else {
     // I need to be horizontal
 }

The title bar widget must have a valid QWidget.sizeHint () 和 QWidget.minimumSizeHint (). These functions should take into account the current orientation of the title bar.
It is not possible to remove a title bar from a dock widget. However, a similar effect can be achieved by setting a default constructed QWidget as the title bar 小部件。

使用 qobject_cast () 作为 shown above, the title bar widget has full access to its parent QDockWidget . Hence it can perform such operations as docking and hiding in response to user actions.

该函数在 Qt 4.3 引入。

另请参阅 titleBarWidget () 和 DockWidgetVerticalTitleBar .

QDockWidget.setWidget ( self , QWidget widget )

widget argument has it's ownership transferred to Qt.

Sets the widget for the dock widget to widget .

If the dock widget is visible when widget is added, you must show() it explicitly.

Note that you must add the layout of the widget before you call this function; if not, the widget will not be visible.

另请参阅 widget ().

QWidget QDockWidget.titleBarWidget ( self )

Returns the custom title bar widget set on the QDockWidget , or 0 if no custom title bar has been set.

该函数在 Qt 4.3 引入。

另请参阅 setTitleBarWidget ().

QAction QDockWidget.toggleViewAction ( self )

Returns a checkable action that can be used to show or close this dock widget.

The action's text is set to the dock widget's window title.

另请参阅 QAction.text and QWidget.windowTitle .

QWidget QDockWidget.widget ( self )

Returns the widget for the dock widget. This function returns zero if the widget has not been set.

另请参阅 setWidget ().
